Roll Flashing and Drip Edge for Metal Roofing
Aluminum drip edge is used in a wide variety of applications. Aluminum drip edge is typically made from aluminum that is resistant to corrosion to help provide more protection from water damage, and used most often at the roof eave and rakes. Union offers both painted aluminum drip edges and unpainted aluminum drip edges ranging from 6″ to 20″ in width and up to 50′ in length.

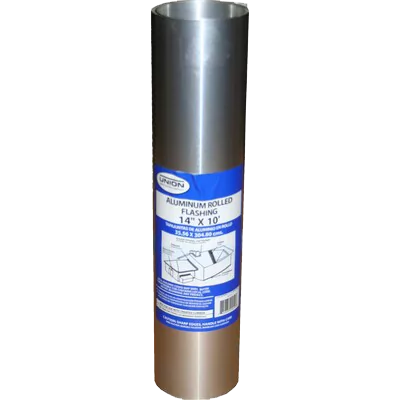

Aluminum roll flashing, sometimes referred to as valley metal, aluminum roll flashing is used in a wide variety of applications. Aluminum roll flashing is typically field formed and used in a flashing or trim capacity for various areas of a home which may include valleys, chimneys, fascia, endwalls, sidewalls, and many others. Aluminum roll flashing will not rust and is light and easy to work with, but aluminum flashing is it’s not as strong as galvanized steel flashing. Union offers both painted aluminum flashing rolls and unpainted aluminum flashing rolls ranging from 6″ to 20″ in width and up to 50′ in length.
Copper roll flashing can be used in a wide variety of applications and copper roll flashing is especially popular with treated lumber or in areas requiring a very high level of corrosion resistance. Union’s copper roll flashing utilizes a polymer backing to isolate it from dissimilar metals. As copper roll flashing weathers, it retains a light green patina. Union’s copper roll flashing is 3 ounce copper in 8″ and 20″ wide copper rolls that are 20′ in length.
Union Corrugating offers a comprehensive assortment of fasteners to accommodate virtually any application or condition detail. From standard screws and rivets to specialized fasteners, each option ensures secure attachment while contributing to the building’s weather resilience and long-term performance. Refer to the installation manual for your selected metal panel to determine the specific fasteners required to complete your project.

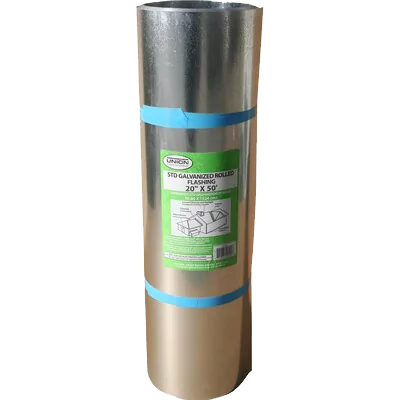

Galvanized steel roll flashing, sometimes referred to as valley metal, is used in a wide variety of applications. The galvanized metal roofing flashing is typically field formed and used in a flashing or trim capacity for various areas of a home which may include valleys, chimneys, fascia, endwalls, sidewalls, and many others. Galvanized metal flashing has the best strength of comparable flashing materials but the galvanized metal flashings can eventually rust, especially along cut or exposed edges. Union offers mill finished galvanized steel flashing in widths from 10″ to 20″ and up to 50′ in length.
Galvanized metal roofing drip edges are used at the eave of the roof to protect the fascia, provide support for the roofing shingles, and to create an edge where water can shed either into a gutter or away from the fascia. Union offers a wide variety of painted and unpainted galvanized metal roofing drip edges suitable for a broad range of weather conditions. In general, areas with snow and ice or high winds use galvanized metal roofing drip edges with larger decks and heavier gauges. Galvanized metal roofing drip edges are the strongest option for severe conditions.

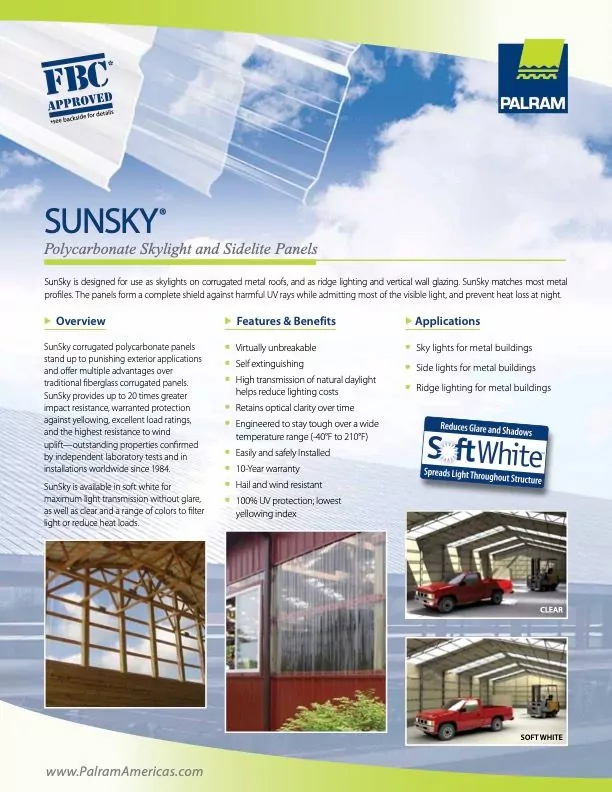

SunSky corrugated polycarbonate panels stand up to punishing exterior applications and offer multiple advantages over traditional fiberglass corrugated panels. SunSky provides up to 20 times greater impact resistance, warranted protection against yellowing, excellent load ratings, and the highest resistance to wind uplift—outstanding properties confirmed by independent laboratory tests and in installations worldwide since 1984.

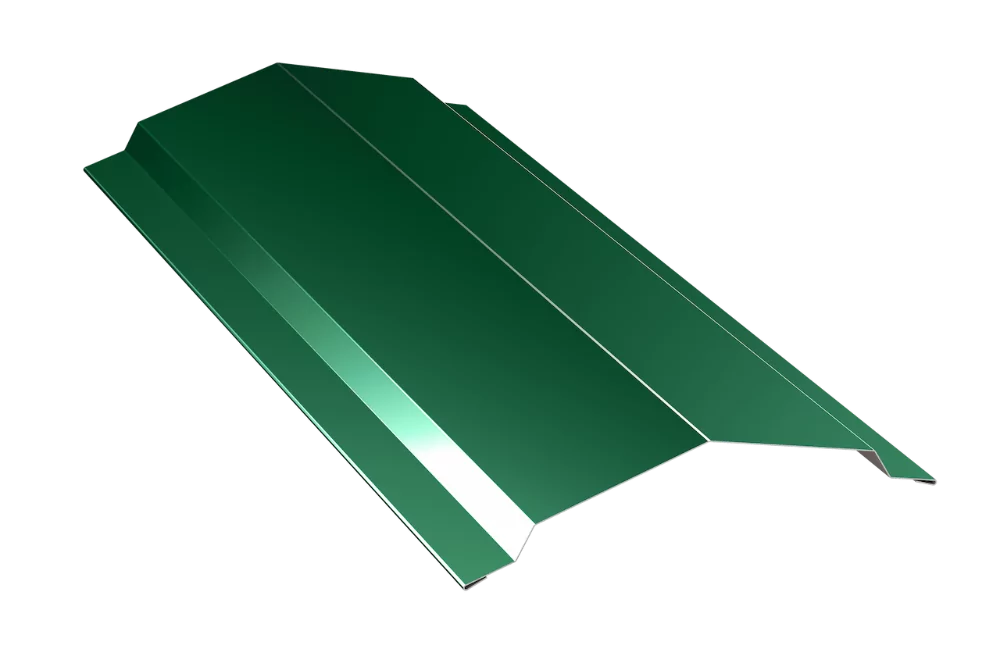

The Union Corrugating Ridge Cap is designed to be used with most metal roofing panels. The Ridge Cap, used in conjunction with Closure Strips and Sealant, reliably protects the ridge seam against water infiltration. The peak top and crisp angles provides a classic appearance for your roof. Speak with a Union Representative for more details.
Durable galvalume substrate extends the life of the product
Specifically designed to be installed at building ridges
Engineered for commercial and residential use
Cuts easily with standard aviation shears
Recommended for roof slope of 3/12 pitch or greater

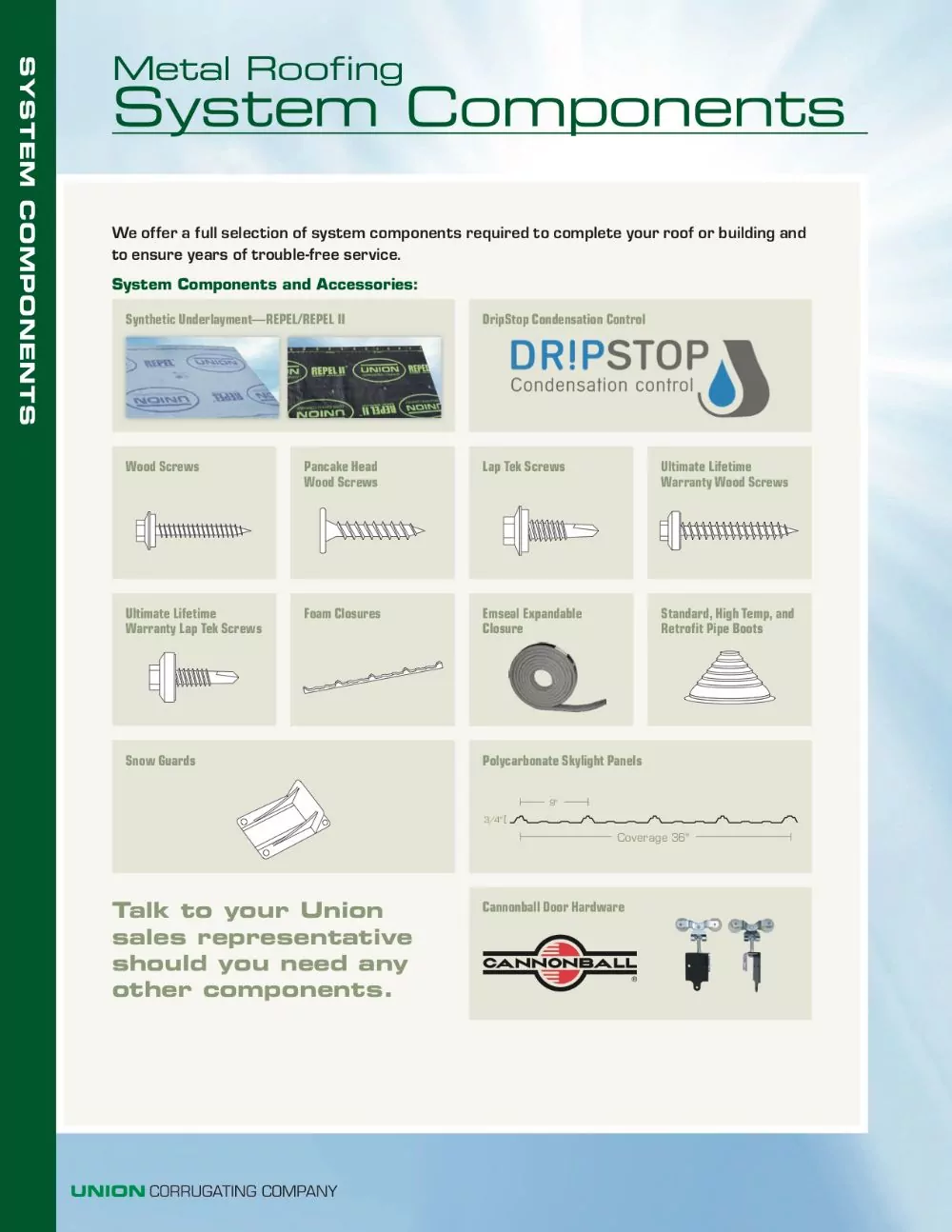

We offer a full selection of system components required to complete your roof or building and ensure years of trouble-free service.

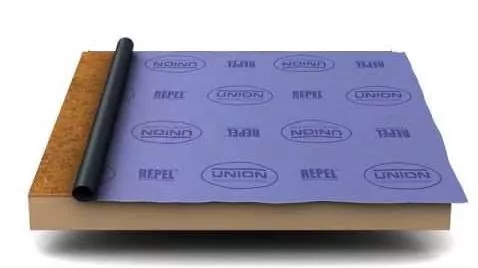

Synthetic Underlayment
Wood Screws
Pancake Head Wood Screws
Lap Tek Screws
Ultimate Life Warranty Wood Screws
Ultimate Life Warranty LapTek Screws
Foam Closures
Emseal Expandable Closures
Standard, High Temp and Retrofit Pipe Boots
Snow Guards
Polycarbonate Skylight Panels
Cannonball Door Hardware
