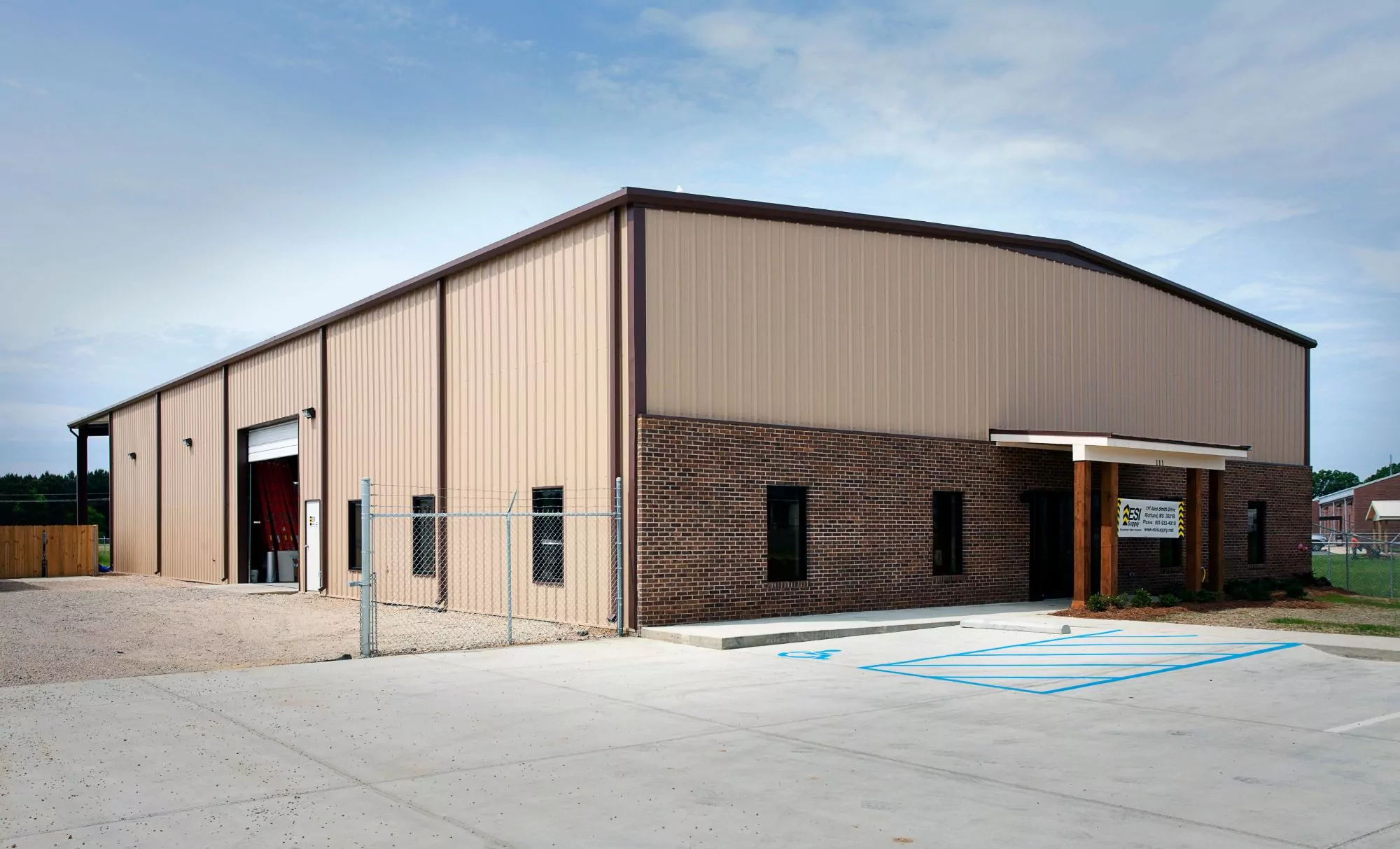

Pre-Engineered Metal Buildings & Storage Solution Panels

Custom designed pre-engineered metal buildings and storage solution panels for commercial, industrial, and residential applications.

Union now offers custom designed pre-engineered metal buildings and storage solution panels for commercial, industrial, and residential applications. We can supply a complete package with factory welded, identified, marked, and pre-punched parts. All kits include a full set of easy to use erection drawings. More information available in our Metal Building FAQs.

Go To Panel

Refine Result

MasterRib SpecsMasterRib Specs

Roof & Wall Panel

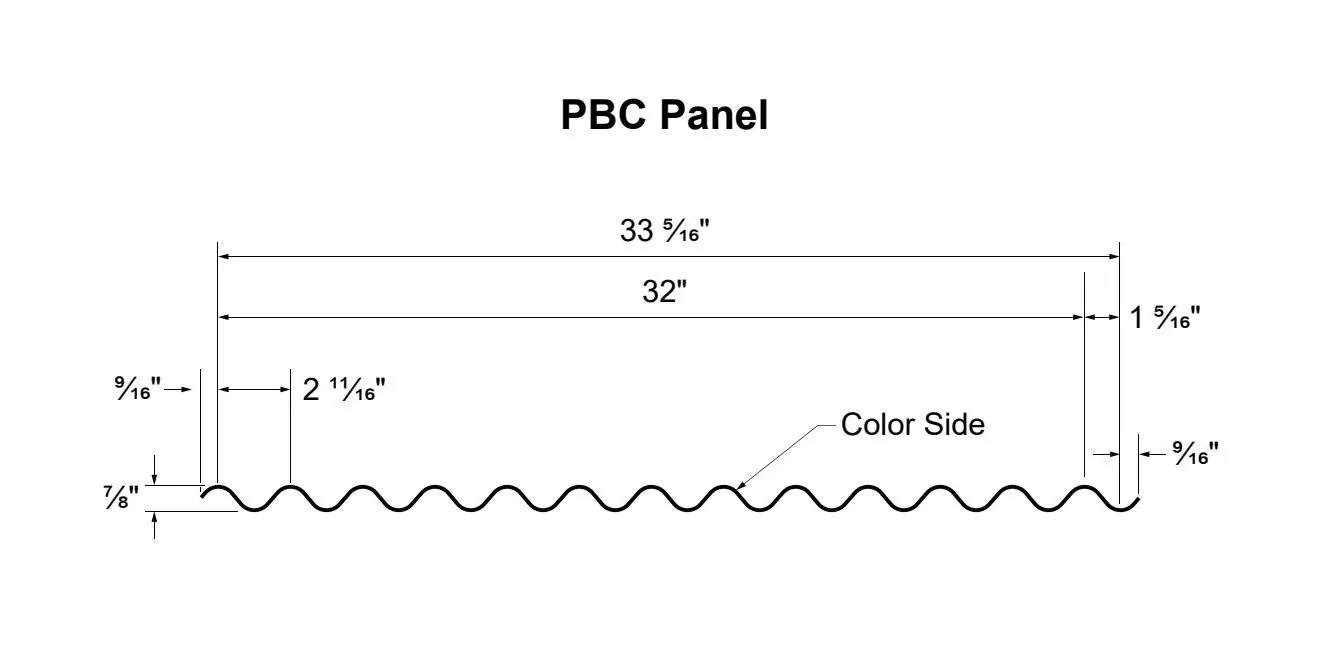

PBC

Designed for commercial, industrial, residential, and steel-framed building applications, the PBC Panel provides architects and designers a corrugated profile option which can be installed as both a roof and a wall panel. Install over a sold substrate or open framing. Suitable for roof applications, as well as both vertical and horizontal wall applications.

Panel Coverage: 32" Coverage
Rib Height: 7/8"
Fastener: Exposed Fastner
MasterRib SpecsMasterRib Specs

Roof & Wall Panel
PBR Panel – Purlin Bearing Leg Panel

Union Corrugating's PBR metal panels are designed for industrial, commercial, and steel-frame building applications. The "R" family of metal panels has the strength to perform on roof pitches as low as 1:12 and on spans up to five feet. The IR metal roofing panels are also suitable for sidewall applications while the PBR metal roofing panel has an added purlin bearing leg to provide better support for roofing applications.

Panel Coverage: 36" Coverage
Rib Height: 1-1/4"
Fastener: Exposed Fastner
MasterRib SpecsMasterRib Specs

Roofing Panel

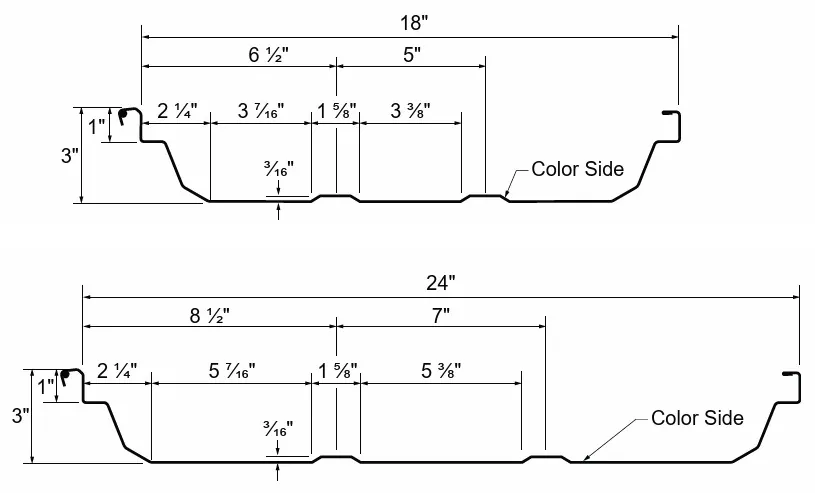

Double-Lok® – Trapezoidal Panel

The Double-Lok® Trapezoidal Panel is a structural metal roofing panel which provides proven wind and weather protection under multiple roof loading conditions. Typically installed over open framing, the trapezoidal profile maintains its structural integrity with panel coverage options 18” of and 24”. The trapezoidal panel’s ¼:12 minimum slope recommendation is the lowest of all metal roofing profiles offered. Mechanically field-seamed ribs for maximum weathertightness.

Panel Coverage: 24" Coverage, 18" Coverage
Rib Height: 3"
MasterRib SpecsMasterRib Specs

Wall & Soffit Panel
FL100

FL100 is a versatile panel that can be used on commercial and residential applications. The panel can be installed in a soffit application or vertically as a wall panel. Venting is available when used as a soffit panel. The interlocking mechanism allows for rapid installation and provides a flush appearance with completely concealed fasteners.

Panel Coverage: 12" Coverage
Rib Height: 1"
Fastener: Concealed Fastener
MasterRib SpecsMasterRib Specs

Roof & Wall Panel
PBU

PBU is a 36” wide exposed fastened panel suitable for both for roof applications, as well as both vertical and horizontal wall applications. This versatile corrugated panel can be installed over open framing or a solid substrate, providing endless design possibilities, including wall, interior liner, soffit, and roof applications.

Panel Coverage: 36" Coverage
Rib Height: 3/4"
Fastener: Exposed Fastner
MasterRib SpecsMasterRib Specs

Roof & Wall Panel
IR Panel

Union Corrugating’s IR metal panels are ideal for wall applications in industrial, commercial, and steel-frame buildings. The “R” family of metal panels has the strength to perform on roof pitches as low as 1:12 and on spans up to five feet.

Panel Coverage: 36" Coverage
Rib Height: 1-1/4"
Fastener: Exposed Fastner
