M Panel

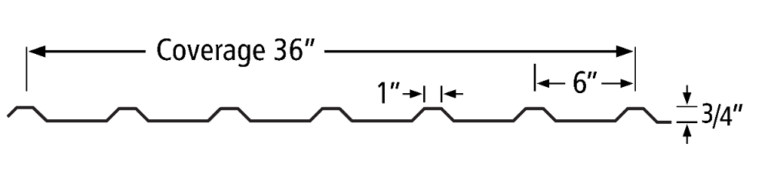

M-Panel is a 36” wide exposed fastened panel suitable for both vertical and horizontal applications. This versatile corrugated panel can be installed over open framing or a solid substrate, providing endless design possibilities, including wall, interior liner, soffit, and roof applications.


  • Applications: Roofing Panel, Wall Panel
  • Fastener: Exposed Fastener
  • Coverage: 36" Coverage
  • Rib Height: 3/4"
  • Exposed fastener panel for soffit and wall applications
  • Suitable for solid deck or open framing

Substrates and Coatings

  • High Strength Steel Gauge Options: 24 GA, 26 GA
  • Finishes: Painted Panels, Unpainted Panels
  • 26 and 24 ga high strength steel
  • Anti-corrosion AZ50 Galvalume® coating for painted and AZ55 for unpainted steel
  • 26 ga available in Signature 200 Paint System
  • 24 ga available in Signature 300 Paint System
