Panel FL100 is a versatile panel that can be used on commercial and residential applications. The flush wall panel can be installed in a soffit application or vertically as a wall panel. Venting is available when used as a soffit panel. The interlocking mechanism allows for rapid installation and provides a flush appearance.


  • Application: Wall Panel
  • Fastener: Concealed Fastener

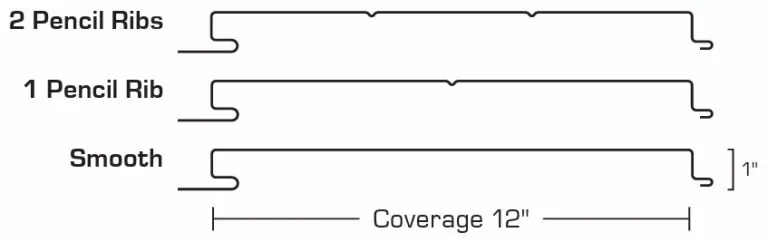

  • Coverage: 12" Coverage
  • Rib Height: 1"
  • Soffit and wall panel
  • Suitable for solid substrate or open framing

Substrates and Coatings

  • High Strength Steel Gauge Options: 24 GA, 26 GA

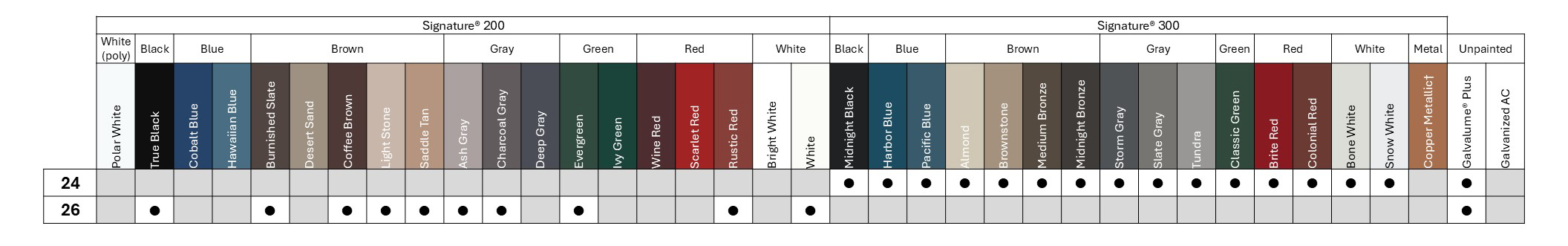

  • Finishes: Painted Panels, Unpainted Panels
  • 26 and 24 gauge high strength steel.
  • 0.032" aluminum.
  • Anti-corrosion AZ50 Galvalume coating for painted and AZ55 for unpainted steel.
  • 24 ga and aluminum available in Signature 300 Paint System
  • 26 ga available in 45 Year and Signature 200 Paint System
