Double-Lok® – Trapezoidal Panel

The Double-Lok® Trapezoidal Panel is a structural metal roofing panel which provides proven wind and weather protection under multiple roof loading conditions. Typically installed over open framing, the trapezoidal profile maintains its structural integrity with panel coverage options of 18” and 24”. The trapezoidal panel’s ¼:12 minimum slope recommendation is the lowest of all metal roofing profiles offered. Mechanically field-seamed ribs for maximum weathertightness.

Specifications

  • Application: Roof
  • Fastener: Standing seam concealed fastener

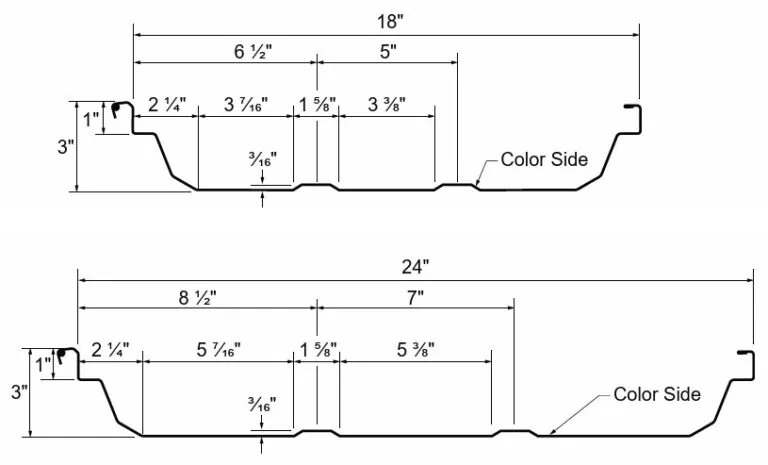

  • Coverage: 18" Coverage, 24" Coverage
  • Mechanically seamed ribs install with sliding clip
  • Rib Height: 3"
  • ¼:12 minimum recommended roof pitch
  • Suitable for solid decking or open framing
  • Applicable for installations requiring weathertightness warranties

Substrates and Coatings

  • High-strength steel substrate
  • Anti-corrosion Galvalume® coating for painted and unpainted steel
  • 24 gauge unpainted Galvalume® Plus
  • 24 gauge Signature® 200 siliconized polyester paint system (select colors)
  • 24 gauge Signature® 300 polyvinylidene fluoride paint system (select colors)
  • Painted panels feature 45-year limited finish warranty coverage
  • Finish: Smooth (standard); Embossed (optional 24ga only)
