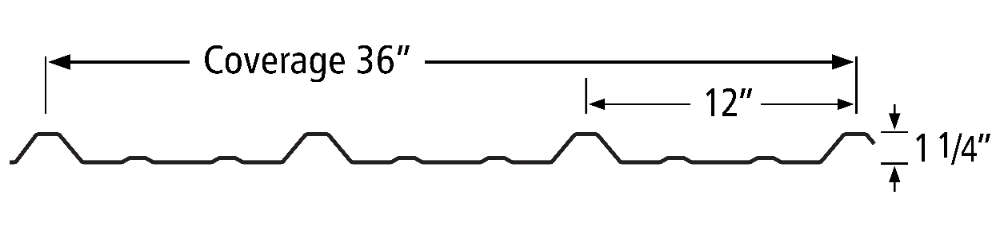

MasterRib® Corrugated Metal Roof Panel

MasterRib metal roofing panel is an industry leader in strength and durability, this popular and versatile metal roofing panel features classic looks and is installed in a wide range of applications including roofing for residential, commercial, and post-frame buildings. MasterRib metal roofing panels was designed with extra-wide ribs to increase strength and ease handling and roof installation. Another unique feature of the MasterRib metal roofing panel is the extra-large siphoning channel on the under-lap rib installed to provide extra leak resistance in the presence of extreme wind and rain loads.

Testing and Approvals

• Metal Construction Association Certified
• Miami-Dade Approved for Wind Uplift
• Energy Star Certified
• Texas Department of Insurance Approved
• Highest UL Ratings for Wind Uplift, Fire and Impact Resistance
• No Coastal Set Back
• FL20484.5-R2 - 29Ga, 80 ksi over min 7/16" OSB, 15/32" APA plywood, or min. ¾" plank
• test
• Texas Department of Insurance Approval #116
• Metal Construction Association (MCA) Certified
• Miami Dade County NOA Compliant
• Florida Building Code Approved
• FL20484.6-R2 - 29Ga min, 80 ksi over min 15/32" APA plywood or ¾" plank
• FL7271.5-R5 - 29Ga. min, 80 ksi over nom. 1" x 4"min lumber
• FL7271.6-R5 - 29Ga, 80 ksi over min 15/32" APA plywood or ¾" plank
• FL9557.4-R5 - 29Ga, 80 ksi over nom. 2" x 2" SPF, SYP, or DF lumber
• Metal Construction Association (MCA) Certified
• Metal Construction Association (MCA) Certified
• Metal Construction Association (MCA) Certified
• Metal Construction Association (MCA) Certified
• Metal Construction Association (MCA) Certified
• Metal Construction Association (MCA) Certified
• Metal Construction Association (MCA) Certified

Resources

• MasterRib Brochure
• MasterRib Brochure

Sheets Specifications

• Applications: Roofing Panel, Wall Panel
• 3:12 Exposed fastener panel for roof and wall applications.
• 1/4" Minimum Recommended Slope:

Substrates and Coatings

• High Strength Steel Gauge Options: 26 GA, 29 GA
• Finishes: Painted Panels, Unpainted Panels
• Anti-corrosion AZ50 Galvalume coating for painted and AZ55 for unpainted steel
• 45 Year and Lifetime Siliconized Modified Polyester Paint System
