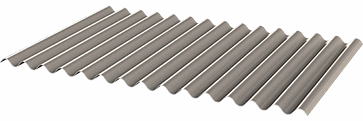

Designed for commercial, industrial, residential, and steel-framed building applications, the PBC Panel provides architects and designers a corrugated profile option which can be installed as both a roof and a wall panel. Install over a solid substrate or open framing. Suitable for roof applications, as well as both vertical and horizontal wall applications.
Specifications
Applications: Roof & Wall
Fastener: Exposed Fastener
Coverage: 32" Coverage
Rib Height: 7/8"
3:12 minimum recommended roof pitch
Suitable for solid deck or open framing

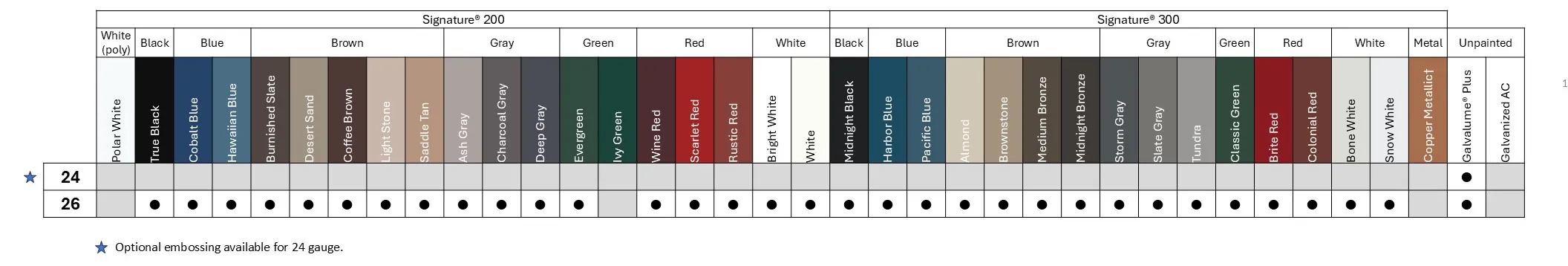

Substrates and Coatings
High-strength steel substrate
Anti-corrosion Galvalume® coating for painted and unpainted steel
26 and 24 gauge unpainted Galvalume® Plus
26 gauge Signature® 200 siliconized polyester paint system (select colors)
26 gauge Signature® 300 polyvinylidene fluoride paint system (select colors)
