5V

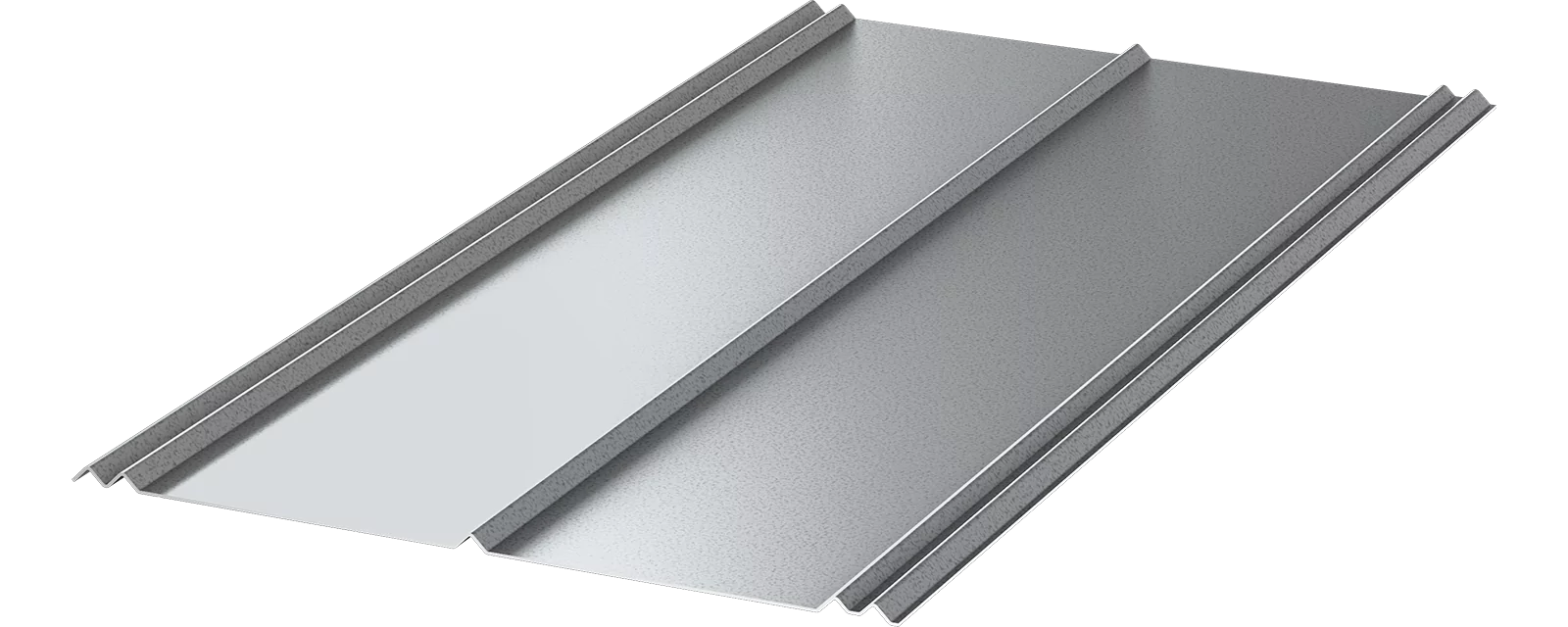

For generations, 5V metal roofing panels have been used on farm buildings and other rural metal roofing projects. Today, many homeowners have recognized that the timeless design of the 5V metal roof panel is ideal for residential metal roofs as well. Our 5V metal roofing panels are especially popular in Florida and other coastal areas where the durability of the 5V metal roofing panels are tested by the weather. The 5V metal roof panels are designed with an enhanced “U” over “V” profile to provide maximum leak resistance.

Specifications

  • Applications: Roofing Panel, Wall Panel
  • Fastener: Exposed Fastener
  • Coverage: 24" Coverage
  • Rib Height: 1/2"
  • Minimum Recommended Slope: 3:12
  • Exposed fastener panel for roof and wall applications
  • 3:12 minimum recommended roof pitch.
  • Suitable for solid decking or open frame.

Substrates and Coatings

  • High Strength Steel Gauge Options: 24 GA, 26 GA, 29 GA

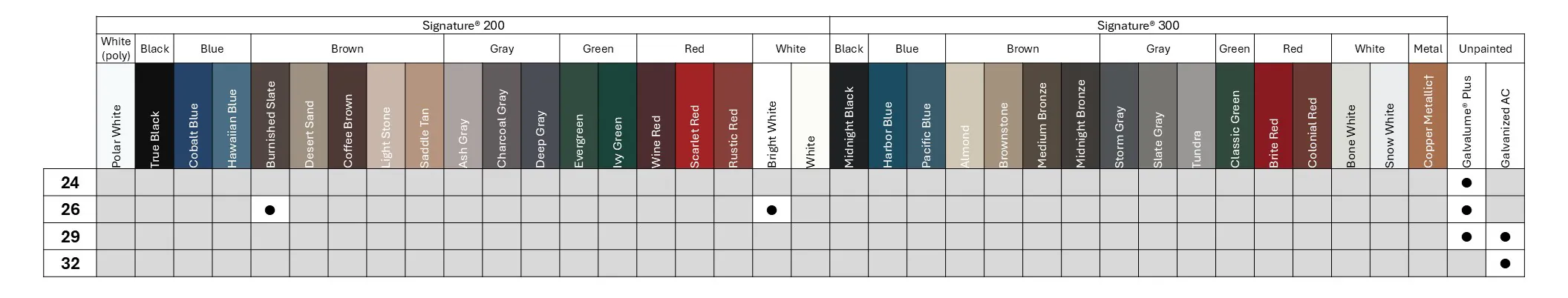

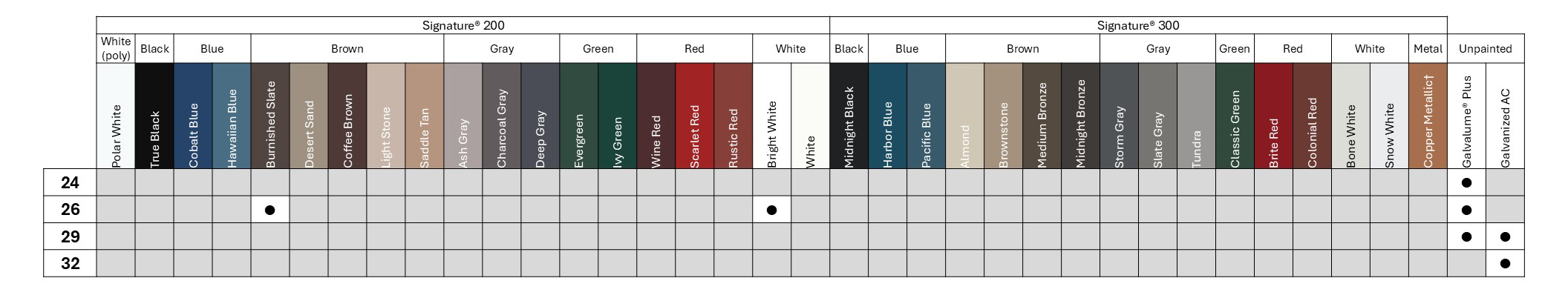

  • Finishes: Painted Panels, Unpainted Panels
  • Economy, 29 and 26 gauge high strength steel
  • Anti-corrosion AZ50 Galvalume coating for painted and AZ55 for unpainted steel. Economy grades use a galvanized coating
  • 45 Year and Signature 200 Paint System
