SL175

Union's SL175 snap-lock metal roofing panel ideal for architectural and light structural applications. Secured with concealed clips for a clean look, the tall ribs snap securely together without the use of special tools to maximize uplift resistance. The snap lock metal roofing panels provide very good wind uplift resistance. Specify as an accent feature or a total roof system for schools, shopping centers, banks, hotels, offices, and a variety of other applications.

Specifications

  • Application: Roof
  • Fastener: Standing seam concealed fastener

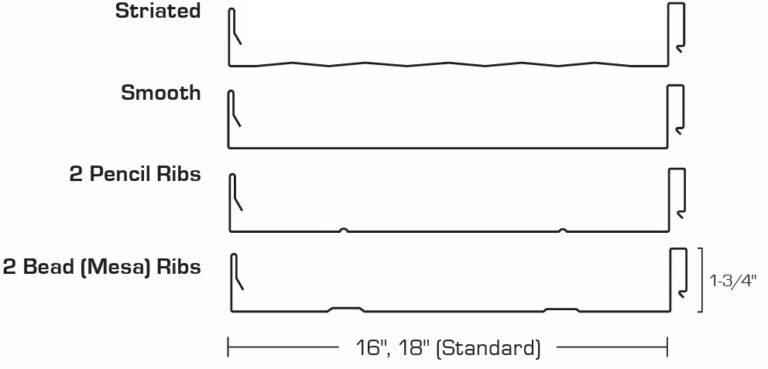

  • 16" Coverage, 18" Coverage
  • Snap-lock ribs install with clips
  • Rib Height: 1-3/4"
  • 1:12 minimum recommended roof pitch.
  • Suitable for solid deck or open framing.
  • Applicable for installations requiring weather-tightness warranties.

Substrates and Coatings

  • High-strength steel substrate
  • Anti-corrosion Galvalume® coating for painted and unpainted steel

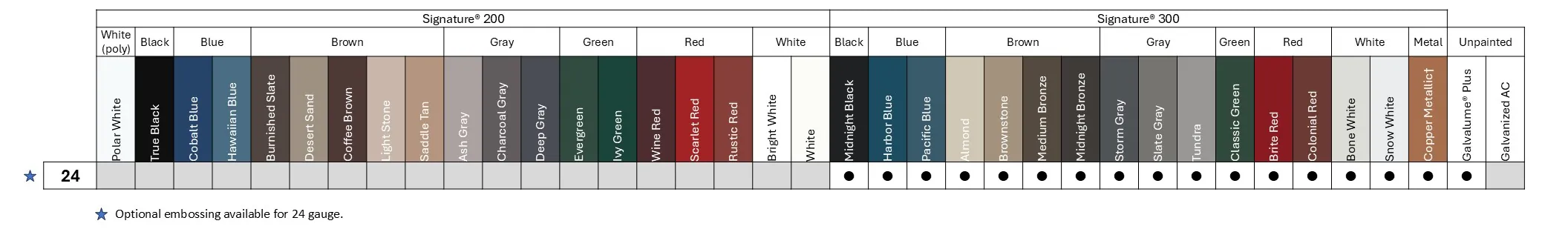

  • 24 gauge unpainted Galvalume® Plus
  • 24 gauge Signature® 200 siliconized polyester paint system (select colors)
  • 24 gauge Signature® 300 polyvinylidene fluoride paint system (select colors)
  • Painted panels feature 45-year limited finish warranty coverage
